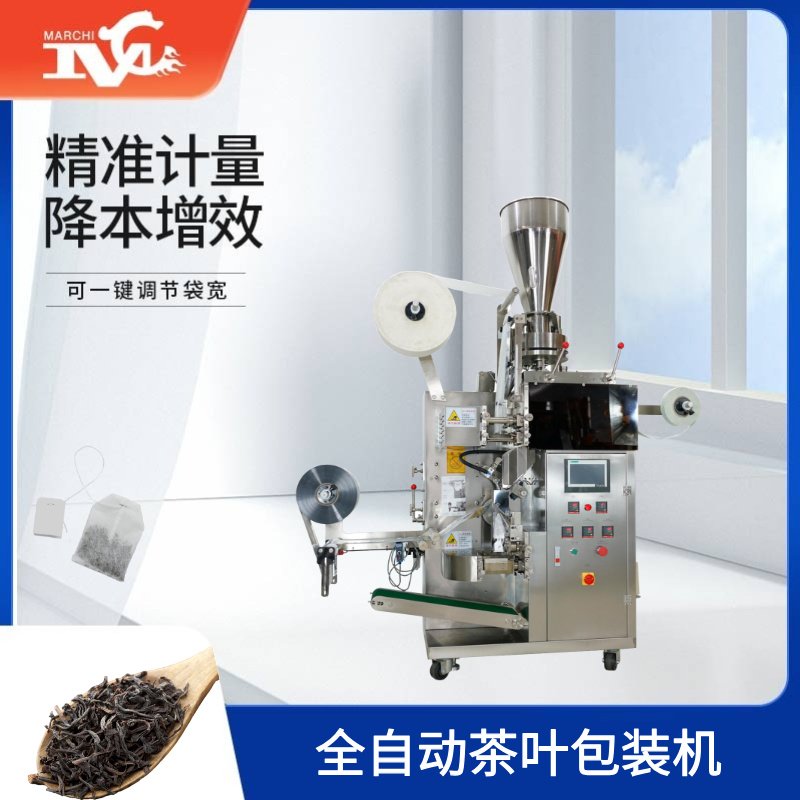

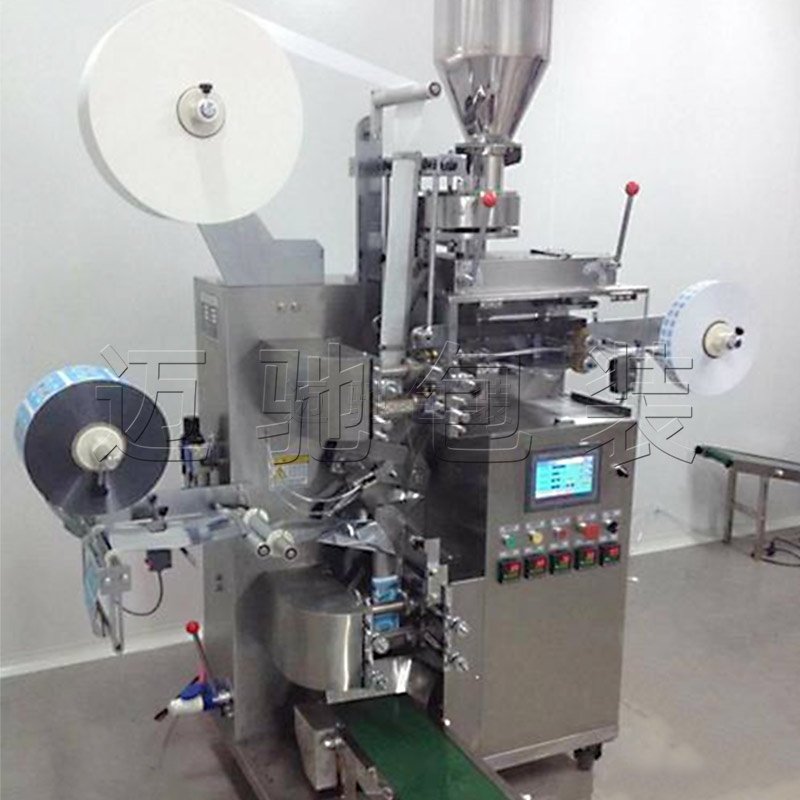

全自動茶葉包裝機

在現代茶葉生產中，高效的包裝設備是保證產品質量與市場競爭力的關鍵。91视频最新地址推出的全自動茶葉包裝機，專門針對袋泡茶和茶葉的包裝需求而設計。作為專業的生產廠家，91视频最新地址的設備采用先進的技術，不僅提高了生產效率，還大幅節省了人力成本。讓91视频最新地址幫助您將優質茶葉以最佳狀態呈現給消費者。

設備簡介：

1、適用於茶葉、藥茶、保健茶草根類等小顆粒物的內外袋一次性包裝。

2、內、外袋拉膜由步進電機控製，袋長穩定、定位準確。

3、采用PID調節溫度控製器，溫度控製得更準確。

4、采用PLC控製整機的動作，人機界麵顯示，保證產品的衛生可靠。

5、包裝材料：茶葉濾紙、棉線、複合膜及標簽。

設備參數：

計量範圍：3 - 10 g（ 1.6 ~ 26 ml ）

內袋尺寸：長 ( L ) ：50 - 70 mm  寬 ( W ) ：45 - 80 mm

外袋尺寸：長  ( L ) ：80 - 120mm   寬 ( W ) ：75 - 95 mm

包裝速度：30-40 bags / min

外型尺寸：1750*740*1950mm

整機重量：550 kg

總 功 率：AC220V/ 50Hz /3.7kw

氣     源：≥0.4m³/min

In modern tea production, efficient packaging equipment is key to ensuring product quality and market competitiveness. Our fully automatic tea packaging machine is specifically designed to meet the packaging needs of bagged tea and loose tea. As a professional manufacturer, our equipment utilizes advanced technology that not only enhances production efficiency but also significantly reduces labor costs. Let us help you present your high-quality tea to consumers in the best possible condition.

Equipment Introduction:

Suitable for one-time packaging of small particle materials such as tea leaves, herbal tea, and health tea roots in inner and outer bags.

The inner and outer bag film pulling is controlled by a stepper motor, ensuring stable bag length and accurate positioning.

Utilizes a PID temperature controller for more precise temperature control.

The entire machine's actions are controlled by a PLC, with a human-machine interface display to ensure product hygiene and reliability.

Packaging materials: tea filter paper, cotton thread, composite film, and labels.

Equipment Parameters:

Measurement Range: 3 - 10 g (1.6 ~ 26 ml)

Inner Bag Size: Length (L): 50 - 70 mm; Width (W): 45 - 80 mm

Outer Bag Size: Length (L): 80 - 120 mm; Width (W): 75 - 95 mm

Packaging Speed: 30-40 bags/min

Dimensions: 17507401950 mm

Machine Weight: 550 kg

Total Power: AC220V/50Hz/3.7kw

Air Source: ≥0.4 m³/min
